The mobile 3D surgical C-arm system which is a combination of conventional 2D radiography and CT-like imaging can creates 3D radiographic image consisting of transverse, sagittal and coronal planes. It brings a brand-new horizon of bone tissue and implants for surgeons, provides maximum guarantee for complex procedures as well as decrease of complications.

Case 1

Description: Female, 56 years old, suffers from lower back pain, combined with pain in lower limbs for 5 years, has limitation of movement. The pain deteriorates when patient engaged with prolonged standing or bending, and relieves when patient lies down. In the last one month, the situation has been worsened.

Diagnosis: MR image shows that L3/L4, L4/L5 disc herniation and intraspinal space-occupying lesion.

Treatment: Laminectomy at L5, S1 vertebrae + pedicle screw fixation

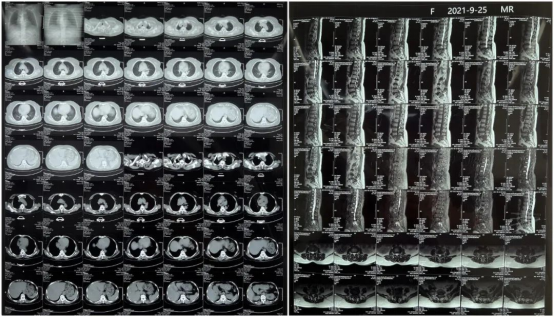

MRI shows disc herniation at L3/4/5 and intraspinal space-occupying lesion

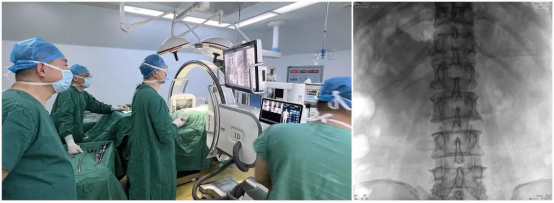

PLX7500 3D surgical C-arm system and presurgical radiography

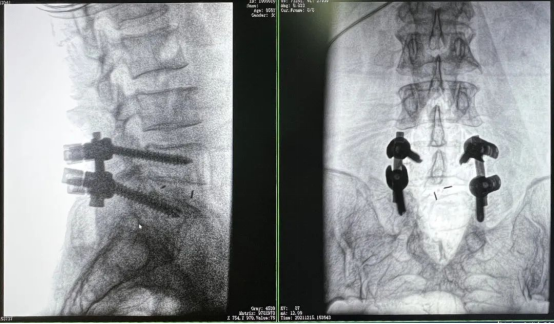

Pedicle screw implantation at L5 S1 guided by radiographic images

3D image achieved by C-arm rotatory scanning

3D radiographic image consisting of transverse, sagittal and coronal planes.

Suturing after surgery

Case 2:

Description: Male, 52 years old, confirmed with comminuted fracture at tibial plateau by presurgical 3D reconstruction.

Treatment: Open reduction and internal fixation

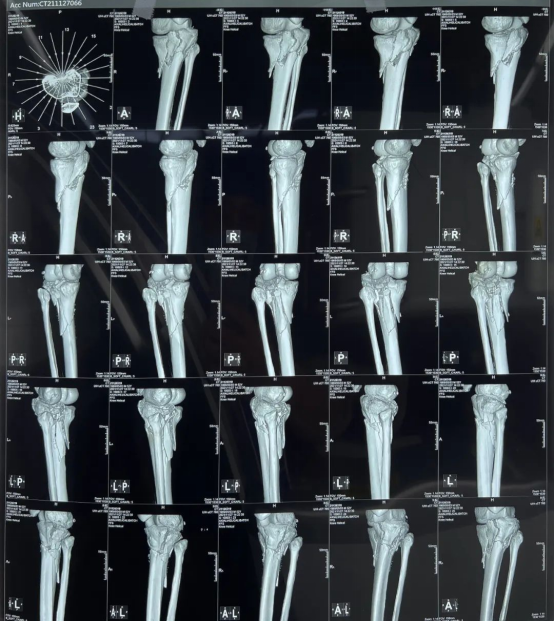

Comminuted fracture comfirmed by 3D reconstruction

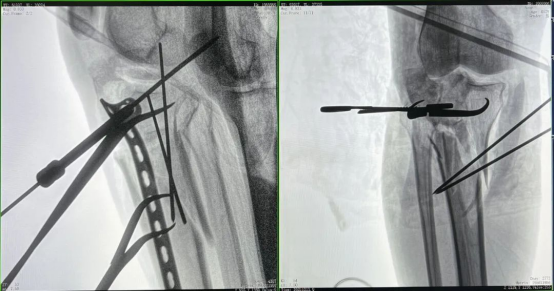

Insert K wire and screws for fixation

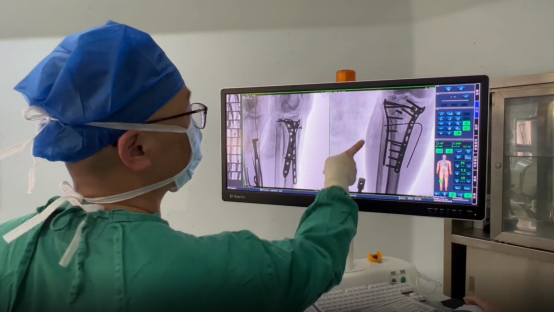

High definition image of AP and lateral view

After-surgery confirmation
