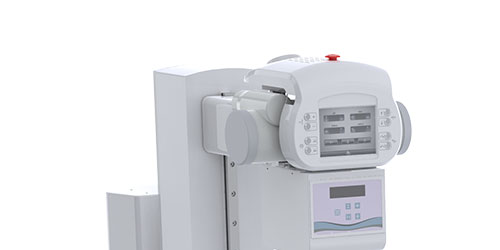

PLD7900

Digital Motion X-ray System U-arm Version

location: Products> U-arm DR
Introduce



Features & Benefits






Multiple configuration
Customized examination

  • Large heat capacity tube

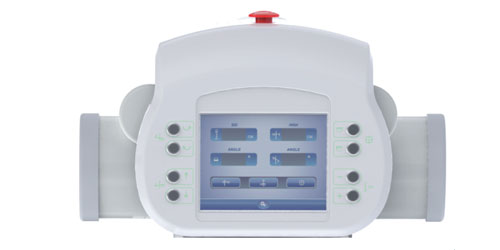

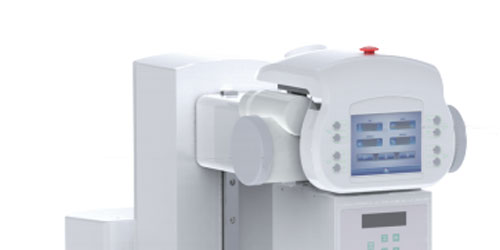

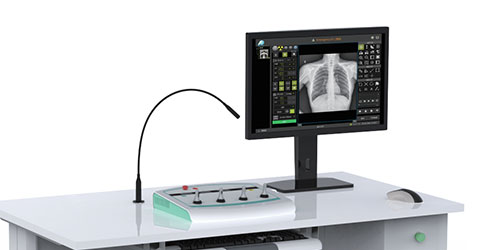

  • Integrated touch screen

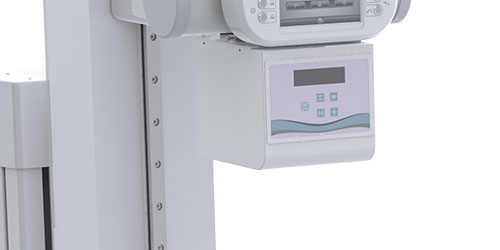

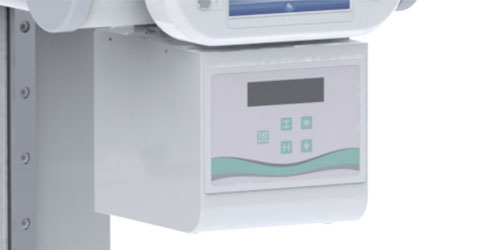

  • Motorized collimator

Easy range selection

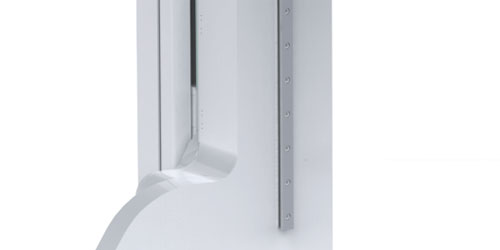

  • SID can automatically stretch to 1.8m





  • 17*17 inch large dynamic FPD(30fps)

Frame rate can be up to 30fps

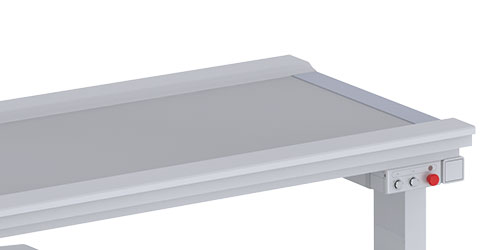

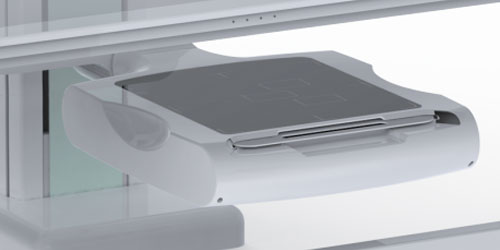

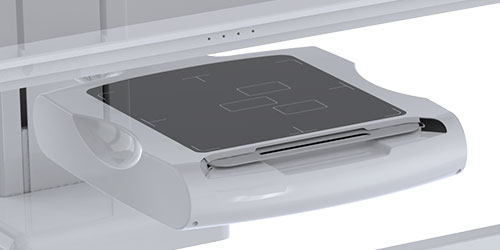

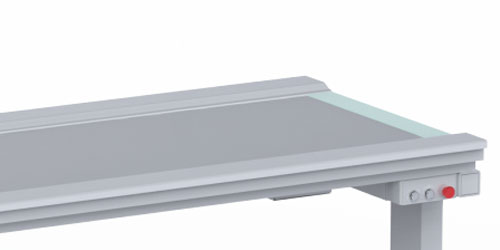

  • Floating Radiography Surface

  • High-frequency and high-voltage generator(50kW/65kW)

Ultra high inverter frequency(500kHz)







Why choose Digital Motion X-ray?

  • What is digital motion X-ray FPD?

Multifuctional
● Capable of digital radiography, digital fluoroscopy and digital angiography.

Dynamic
● A technique for analyzing dynamic changes based on the transmittance of X-rays.
● Enables clinicians to observe the dynamic motion of anatomical structures over time, enhancingdiagnostic capabilities.


    • Advantages compared with static X-ray

● Digital motion x-ray use leading edge tecnology inmaking detailed and real time images than static images.
● Evaluate the patiens’ condition or recovery effectivelyby observing the dynamic changes of organ function.

  • Clinical Applications

Radiography Center



Health Examination Center







orthopedics and Trauma



Pulmonary



Glimaging



Gynecology




  • Outstanding radiography & fluoroscopy performance


Digital radiography

General radiography, high kv radiography, oblique position radiography.



Digital fluoroscopy

Chest and abdominal fluoroscopy, foreign body localization and removal.


  •


Digital angiography

Esophagogram, intravenous pyelography,T-tube cholangiogram, salpingography.


Digital spot imaging(DSI)

Spot imaging in milliseconds, high definition image acquisition to accurately target the lesions.

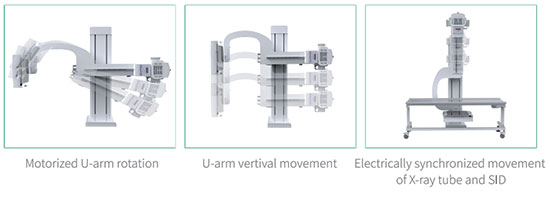

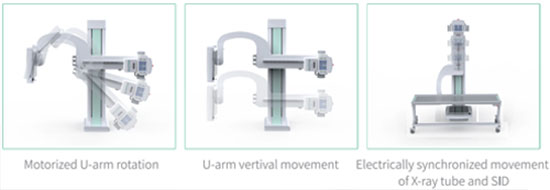

  • Versatile movement








Safety control
Accurate and efficient

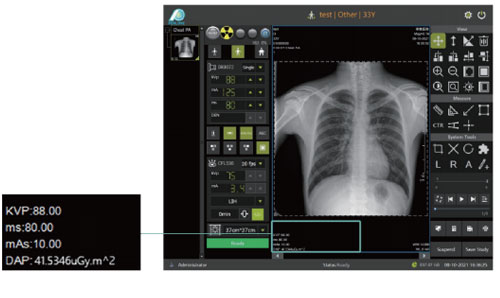

  • DAP- Dose visualized, safety assured

● The pioneer usher in intelligent radiation dose monitoring system.
● Synchronous dose monitoring system, guaranteeing more accurate diagnosis.

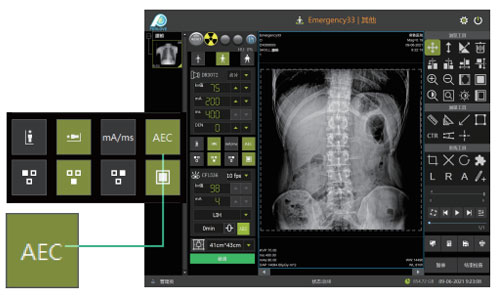

  • lonizaiton chamber AEC system

● Automatically control mAs in a more efficient way.
● Automatically adjust the brightness through different body part.
● Simplify operation and improve overall effeciency.

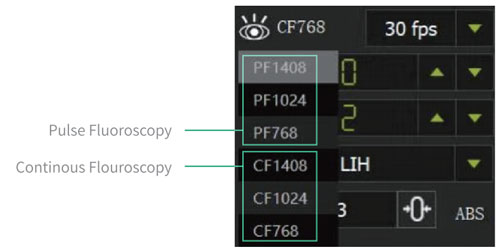

  • Pulse Fluoroscopy, get clear images at low doses

● A variety of perspective modes are available.
● Extremely fast exposure, reducing image noise and improving sharpness.
● Significantly reduce radiation dose and take care of the health of doctors and patients.







Feature enhancements
Ultimate experience

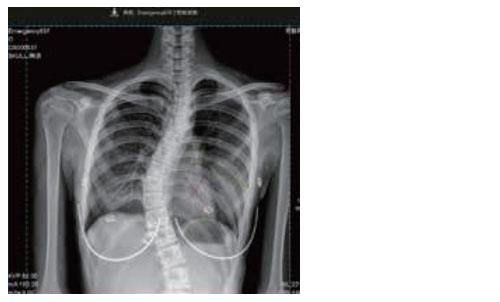

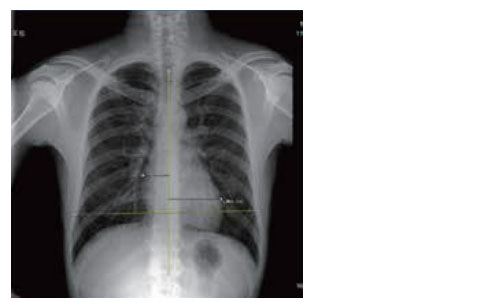

  • Cardiothoracic ratio measurement

Cardiothoracic ratio is a common indicator for evaluating cardiac enlargement, and is mostly used for diagnosis of exclusion or follow-up evaluation of patients.(For example, if the cardiothoracic ratio is found to be enlarged during the examination, further examination can be carried out in com-bination with the medical history and symptoms to confirm the diagnosis)

  • Spine measurement

Spinal measurement can visually display the overall anato-mical shape and scoliosis position of the spine, judge the balance and flexibility of the spine, and have certain value in the diagnosis, preoperative evaluation, and postoperative judgment of scoliosis.

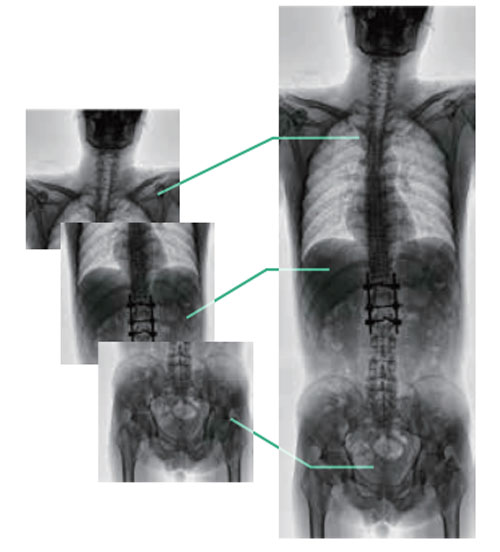

  • Automatic stiching function - accurate and precise(Optional)

● Panoramic images of full spine, full lower limbs.
● Accurate measurements of preoperative planning and postoperative surgery.
● One-step radiography, providing more reliable diagnostic basis for clinical practice.

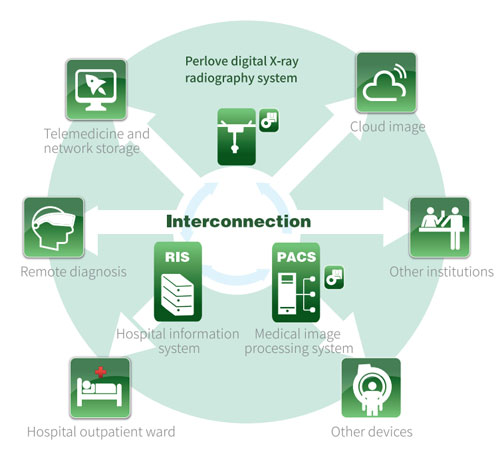

Cloud Image lnterconnection

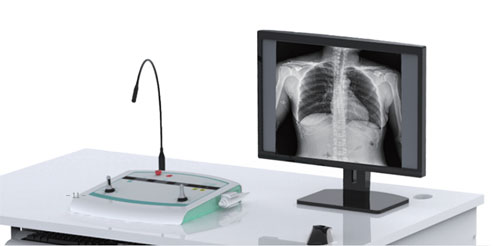

  • Pre-view Various Examine Modes

● The system brings convenience to staff by multiple intelligence control modes, simple and fast control interface and efficient image collection will acceler-ate the speed and improve accuracy of clinical radiography.
● Meet the different requirements of outpatient, eme-rgency, physical examination on different cases.

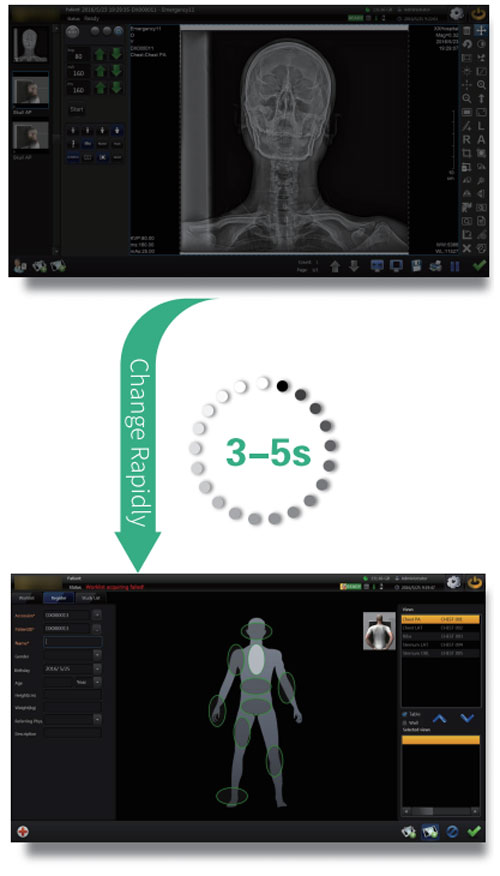

  • Fast Image Acquisition

● High standard software system, faster image acqui-sition, improved workflow continuity and overall inspection quality.3-5 seconds speed conversion,1-2 seconds faster than similar DR, offering faster examine experience for clinic.
● Fast automatic image processing.
● Automatic image output.





Certifications- CE,ISO Approved


● The system can be maintained remotely, it can perform fault self-diagnosis and display fault codes, quickly and accurately determine the fault status and has self-protection functions.
● lt can share information with PACS system, bring benefits for remote diagnosis.
