Overall solution for next episode of spinal surgery PL300B
Elite in details
Tracking and navigating in sub-millimeter accuracy
Large angle rotatable and large size LCD monitor for easy image reviewing
Screws’trajectory and position planning
Displaying real-time modified plan and mechanical sensor feeback |
Overall design of workstation and optical measurement camera helps to maximize space in the OR
Navigate the instrumentation guide to the right position through pre-op plan

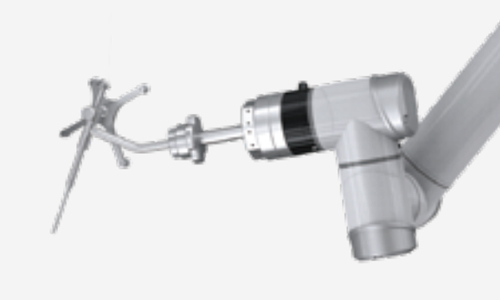

State-of-art robotic arm and built-in force sensor provide high accruateinstrumentation |
Self-adaptive calibrationPerlove Medical is the first manufacturer in China that combines intraoperative 3D imaging C-arm and spine surgical navigation system.
Precision treatment
The software utilize 3D image to make surgcial plan for the idealscrew position, calibers and instrumentation trajectory. |
Surgical arm can be precisely sent to the right position through wellplanned trajectory, ensuring consistency between pre-op surgicalplan and intra-op surgical outcome.
Real time motion tracking and position modifing, ensuring precise screw placement.
The smart navigation system and robotic arm deliver high degree ofaccuracy, effectively decreasing complication rate and revision rate.
Equipped with cutting-edge optical tracking sensor and robotic arm,PL300B utilize intraoperative 3D based imageto make pre-operative plan, allowing surgeon to performspinal MIS with submillimeter accurate navigation.Especially for high-risk and complex procedure, it hasobvious advantages and can effectively reduce surgicalrisk. |
Extend the capability of MISMinimally Invasive
With the reference percutaneously fixed to the patient,additionalinjury can be largely avoided, making the patient recovery fast afterthe surgery.
In traditional open approach spinal surgery, wider incision is necessaryto expose cnough anatomy for surgeon.However, small incision of only1-2cm will give enough space for instrumentation in robotic assistedsurgery, saving 50% surgical time, reducing 95%blood loss with a lowcomplication rate.
| Simplify surgical workflowSimplication Muti-purpose
PL300B is capable to have multiple pedicle screws trajectoryplanned in a single operation compared with traditional openapproach, saving surgical time spent and improving screw place-ment efficiency.
User friendly navigation software interface, eliminating uncertaintyof complex spinal surgery, creating a standardized surgical work-flow with reduced learning curve.
Planning for multiple vertebral levels，enabling visualization ofcntry point,screw angle and trajectory for various spinal procedure(e.g.PKP,LIF)
|
Intelligent surgical experience carry outsafe and convenient surgical outcome
Overall design of optical camera and monitor cart brings out smaller footprint and more flexible maneuverability.
Medical grade articulating monitors provide multiple observation perspective with delicacy clarity.
Precise surgical planning operation carried out by robotic arm, greatly saving surgeon’s enegry in long duration operation.
Surgical plans are conducted by surgeon and carried out by navigation system.
Built-in motion simulation and mechanical sensor enable the robotic arm to stop moving immediately when it encounters an obstacle, preventing collision accident.
| Lower radiation level Shorter surgical duration
In robotic-assisted surgery, the total amount of radiation dose,fluoroscopy duration and times are greatly reduced, bring safetyand care for both patient and surgeon. The radiation level in robotic assisted surgery is only 18% of free hand surgery

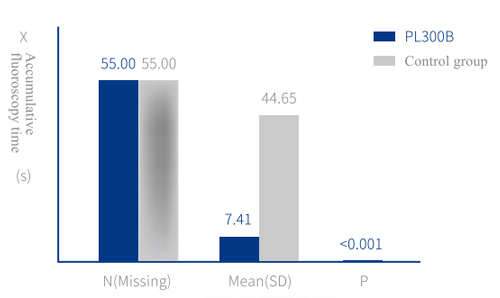

The fluoroscopy time for each screw placement in robotic assistedsurgery is 2.3s compared with 39s in free hand surgery， whichgreatly reduce operative time, improving 30% surgery efficiency.
|

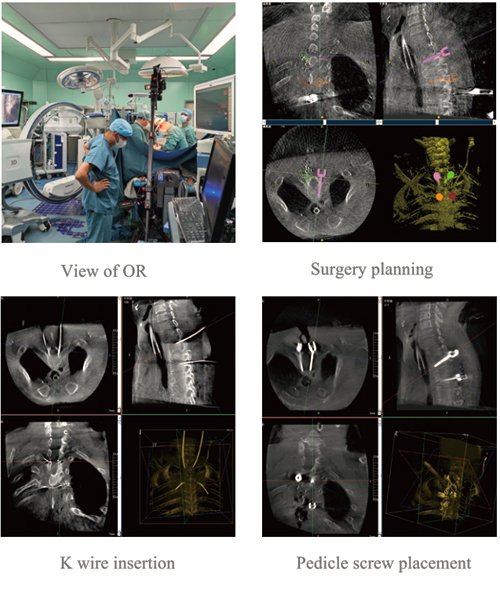

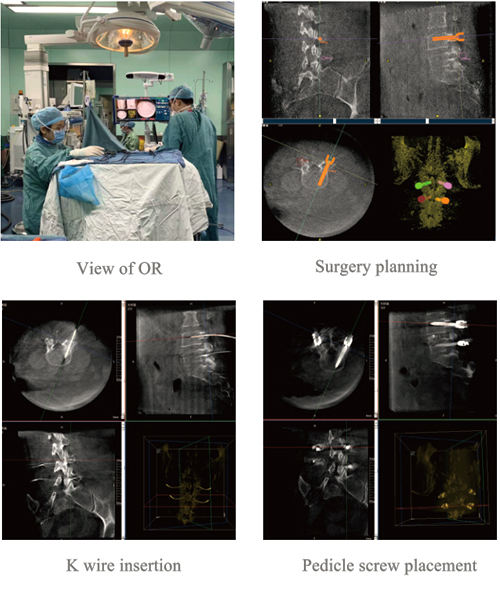

T2,T4 pedicle screw fixationin robotic-assisted surgeryDescription: Male, 45 years old
| L4, L5 pedicle screw fixation in robotic assisted surgeryDescription: Femle, 50 years old
|

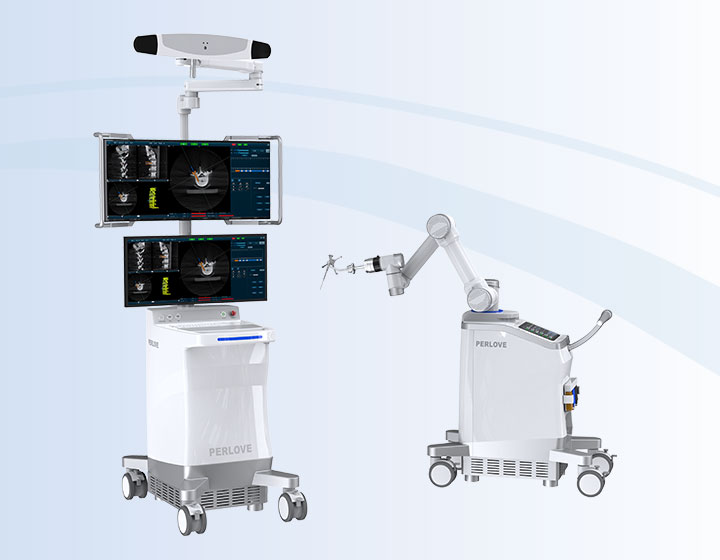

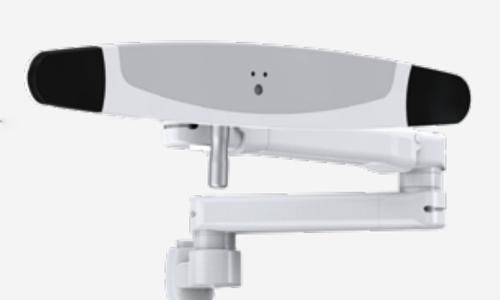

Optical measurement camera
Tracking and navigating in sub-millimeter accuracy

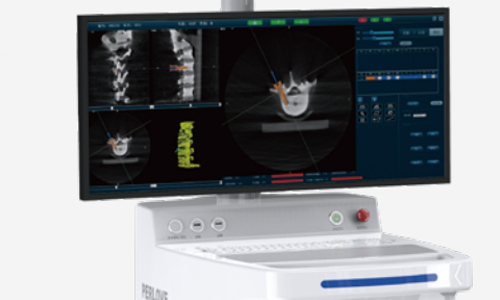

34 inches LCD surgical monitor

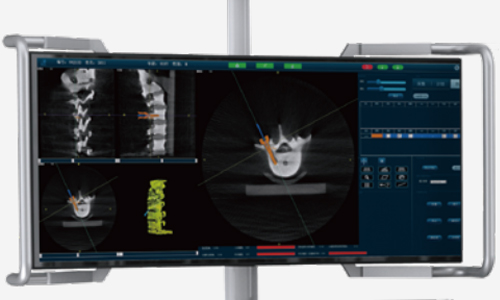

Large angle rotatable and large size LCD monitor for easy image reviewing

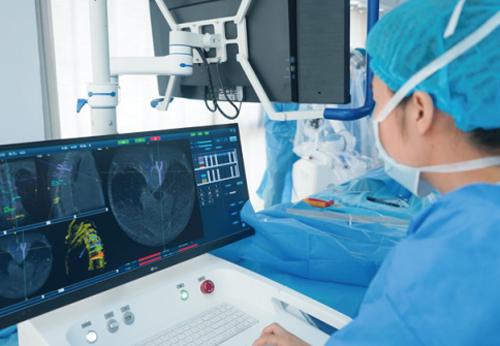

Pre-op planning system
Screws’trajectory and position planning
29 inches workstation monitor
Displaying real-time modified plan and mechanical sensor feeback
Optical measurement camera
Tracking and navigating in sub-millimeter accuracy
34 inches LCD surgical monitor
Large angle rotatable and large size LCD monitor for easy image reviewing
Pre-op planning system
Screws’trajectory and position planning
29 inches workstation monitor
Displaying real-time modified plan and mechanical sensor feeback

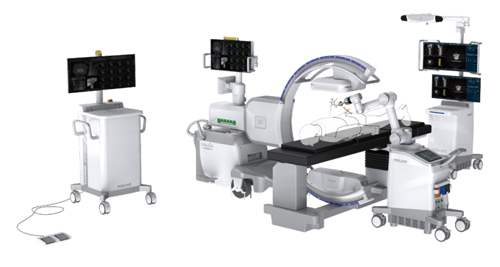

Perlove Medical is the first manufacturer in China that combines intraoperative 3D imaging C-arm and spine surgical navigation system.
Equipped with the intraoperative 3 D imaging C arm system which independently developed and produced by Perlove, PL300B, which integrated with self-adaptive calibration technology, can realize image automatic registration, and automatically estab-lishes the association of three coordinate systems, the optical position gauge, the patient and the image.
No manual intervention is required in registration process, and the accuracy is not affected by the image quality. It brings stron-ger system compatibility, more accurate coordination matching and more convenient calibration.
Pre-op surgical planning
The software utilize 3D image to make surgcial plan for the idealscrew position, calibers and instrumentation trajectory.
Self navigation
Surgical arm can be precisely sent to the right position through wellplanned trajectory, ensuring consistency between pre-op surgicalplan and intra-op surgical outcome.
Real time motion tracking
Real time motion tracking and position modifing, ensuring precise screw placement.

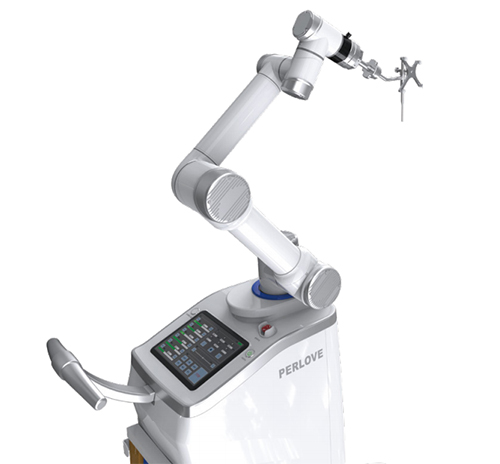

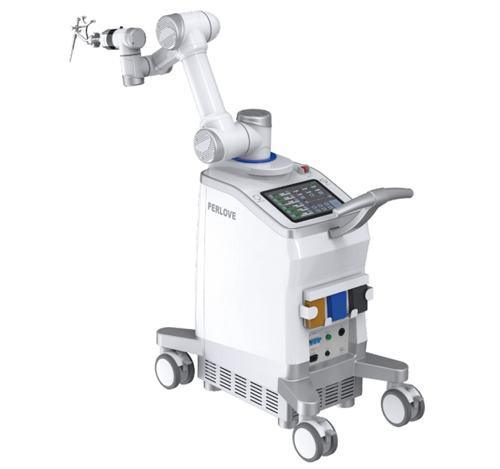

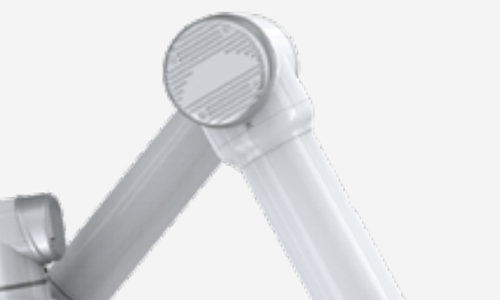

High-precision robotic arm
The smart navigation system and robotic arm deliver high degree ofaccuracy, effectively decreasing complication rate and revision rate.
Positioning with accuracy
Equipped with cutting-edge optical tracking sensor and robotic arm,PL300B utilize intraoperative 3D based imageto make pre-operative plan, allowing surgeon to performspinal MIS with submillimeter accurate navigation.Especially for high-risk and complex procedure, it hasobvious advantages and can effectively reduce surgicalrisk.
Minimally Invasive
Percutaneous fixation
With the reference percutaneously fixed to the patient,additionalinjury can be largely avoided, making the patient recovery fast afterthe surgery.
Small incision
In traditional open approach spinal surgery, wider incision is necessaryto expose cnough anatomy for surgeon.However, small incision of only1-2cm will give enough space for instrumentation in robotic assistedsurgery, saving 50% surgical time, reducing 95%blood loss with a lowcomplication rate.
Simplication Muti-purpose
Optimized surgical workflow
PL300B is capable to have multiple pedicle screws trajectoryplanned in a single operation compared with traditional openapproach, saving surgical time spent and improving screw place-ment efficiency.
Standardized surgical workflow
User friendly navigation software interface, eliminating uncertaintyof complex spinal surgery, creating a standardized surgical work-flow with reduced learning curve.
Multiple vetebral levels planning
Planning for multiple vertebral levels，enabling visualization ofcntry point,screw angle and trajectory for various spinal procedure(e.g.PKP,LIF)

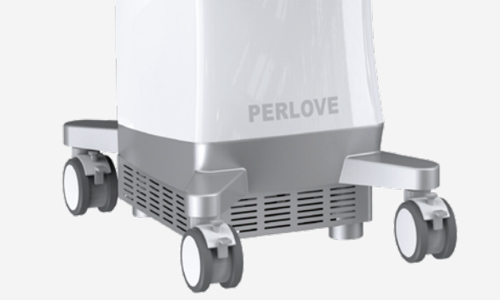

Overall roll cart design
Overall design of optical camera and monitor cart brings out smaller footprint and more flexible maneuverability.
Articulating monitors
Medical grade articulating monitors provide multiple observation perspective with delicacy clarity.
Stable surgical plan operation
Precise surgical planning operation carried out by robotic arm, greatly saving surgeon’s enegry in long duration operation.
Human-machine collaboration
Surgical plans are conducted by surgeon and carried out by navigation system.
Motion simulation and mechanical sensor
Built-in motion simulation and mechanical sensor enable the robotic arm to stop moving immediately when it encounters an obstacle, preventing collision accident.
Reduce radiation absorption
In robotic-assisted surgery, the total amount of radiation dose,fluoroscopy duration and times are greatly reduced, bring safetyand care for both patient and surgeon.
The radiation level in robotic assisted surgery is only 18% of free hand surgery
lmproved surgery efficiency
The fluoroscopy time for each screw placement in robotic assistedsurgery is 2.3s compared with 39s in free hand surgery， whichgreatly reduce operative time, improving 30% surgery efficiency.
Description: Male, 45 years old
Surgery: Spinal tumor separation with T2,T4 pedicle screw fixation
Numbers of screws: 4
Description: Femle, 50 years old
Surgery:L4,L5 pedicle screw fixation
Numbers of screws: 4
