PLX101 Series

• More details

• Less dose

• Convenient

• Safety

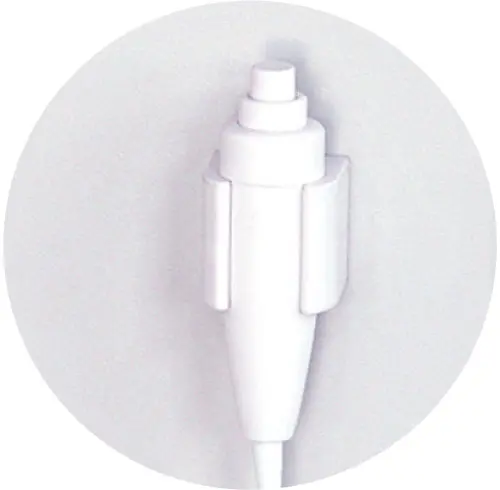

• Two gears exposure hand brake

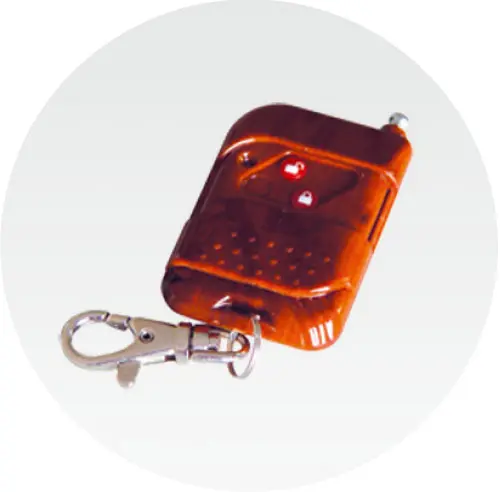

• Remote hand-held controller (available in 20 meters)

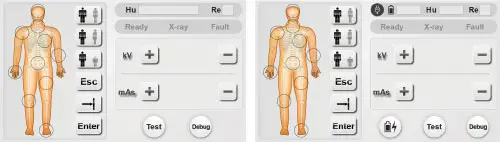

• Compact operation panel, intuitive interface, easy to operate.

Application

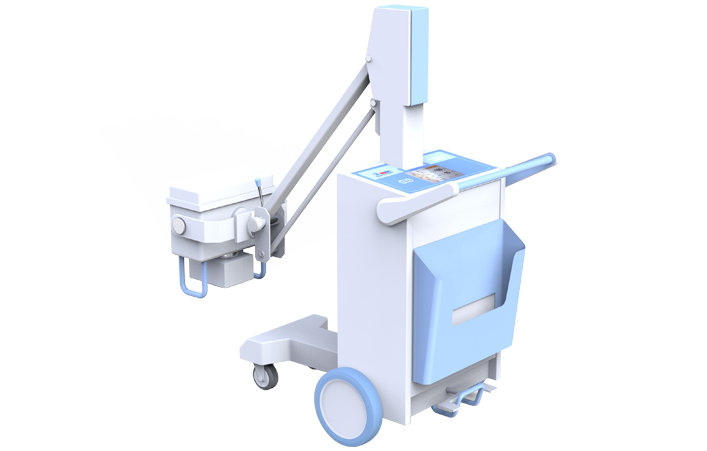

The machine is mobile X-ray radiography
medical diagnostic equipment. It can be used
in wards, operation rooms and emergency
rooms etc to satisfy the radiography
requirements of human body such as head,
chest and limbs etc.

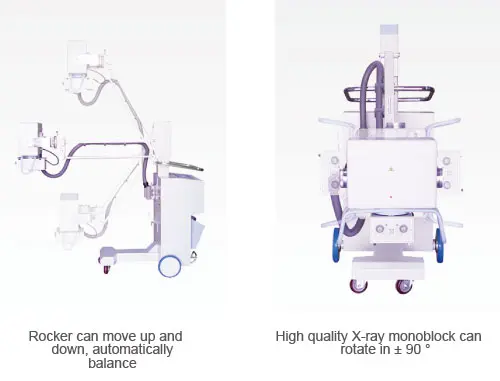

The flexible movement of the unit thanks to main wheel and direction wheel design.

PLX101/101A/101C

Features

• Our high frequency technology assures the best image in every operating condition along with reduced patient dose and extended x-ray tube life time .
• The generator provide the right amount of penetration, reducing exposure times and retakes.
• The parameter can be adjusted by the kV and mAs . multiple security protect function such as over-voltage, over-current.
• 50 preset exposure programs allow extensive possibilities to optimize the exposure and processing parameters according to your preferences.
• Fault automatic protection setting and fault alarming display.
• Parameters are automatically storage when power cut off.

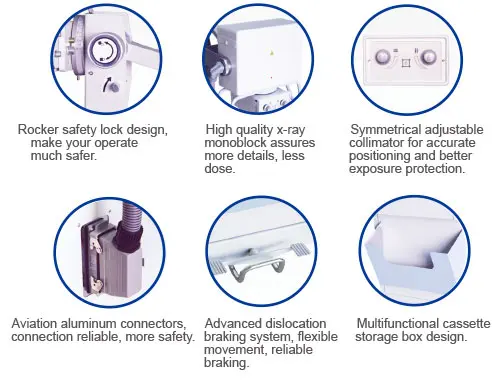

• Adopt rotating beam limiting device to adjust the X-ray field and angle freely.
• Adopt manual controller and remote controller to do exposure.
• Optional: PLXF152 mobile table for high frequency mobile X ray equipment.
• PLX101D is equipped with built-in battery, can take 200 films when full charged.

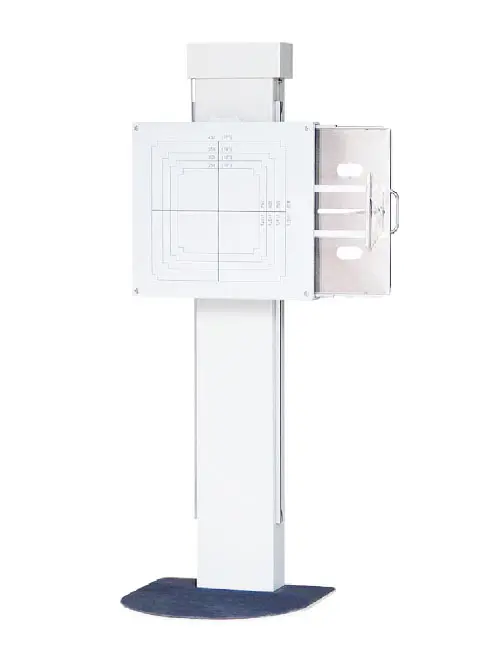

• Bucky Stand

Height: 1770mm
Vertical movement range: 470-1470mm
Grid density: 103L/inch
Grid radio: 10:1
Focus distance: 150cm
Maximum grid box: 17”×17”

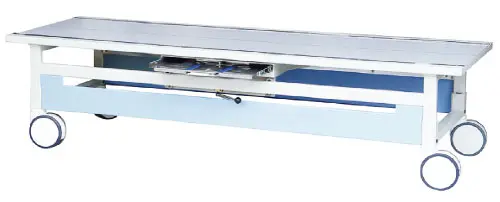

• PLXF152 Mobile Bed For Mobile X-ray Machine

Size: 2000×700×500mm
Range of grid box movement≤1210mm
Size of grid box: 430×430(17”×17”)
