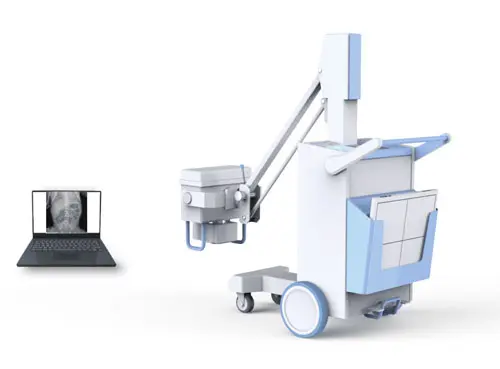

Lightweight Design Compact and Flexible PLX5100

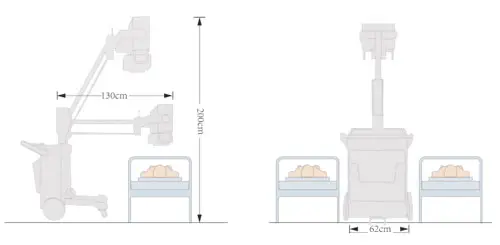

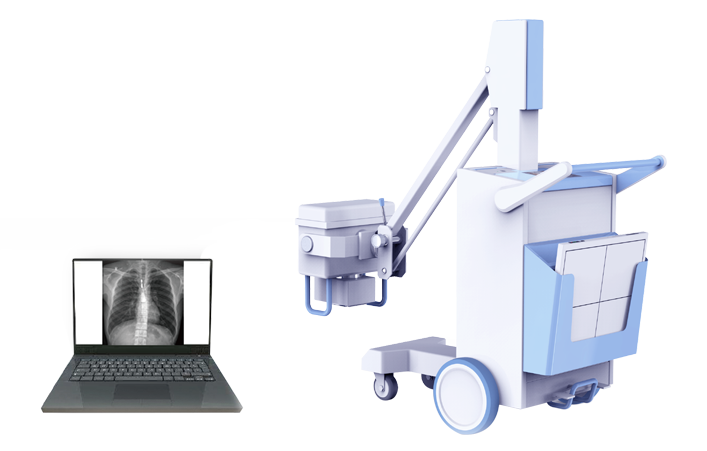

Lightweight Design Compact and Flexible● The rocker arm can move up and down, the combined tube can rotate at multiple angles, with the wireless panel it is more convenient to operate. ● The width of the body is only 62cm, which can easily pass through narrow passages and can be used for clinical exposure in the ward.

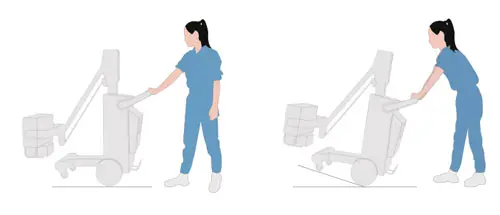

| ● PLX5100 uses lightweight materials, the weight of the whole machine is less than 150KG, innovative mechanical design, light and flexible to move; dislocation brake system, safe and reliable braking.
● Equipped with large size, low energy consumption, portable mobile wireless flat panel detector. ● The workstation adopts DR special image acquisition and processing software, supports DICOM service, convenient to operate. |
 | High definition image Easy to clinical diagnosis● Equiped with high frequency inverter technology to ensure high X-ray quality, low radiation dose and sharp image.
|
Technical Specifications
Generator and tube | |
Kv scope | 40-120 kV |
Power | 5kW |
Nominal Tube voltage | 120kV |
Nominal Tube current | 100mA |
mAs range | 1.0mAs to 250mAs |
Focus | 0.6/1.8 |
Detector | |
Type | Digital Cesium Iodide (CsI) |
Detector size | 430mm x 430mm |
Image resolution | No less than 2.8 lp/mm |
Mobile unit | |
Movement | Human-powered traveling |
Source image distance | 50 to 170 cm |
Dimension | 1450 mm * 650 mm * 1350 mm |
Net weight | 155kg |
Stand column rotation | Yes |
Safety information
Pregnant women and breast-feeding women are not suitable.
Wear x-ray protective coats and glasses when operating the machine. When taking normal radiography, the focus-skin distance should be longer (at least more than 200mm), and the body should be as close to the flat panel detector as possible. Use lower dosage exposure if condition allowed.
As radioactive equipment, this equipment shall be operated by operator strictly according to provisions of the User Manual and cannot be used for other purpose except medical radiography. As improper operation will damage this equipment, it can only be used by trained personnel with needed radiation knowledge.
The potential side effects of the PLX5100 are related to X-ray radiation. There are mainly two types of side-effects of X-ray radiation:
l Deterministic effects: acute exposure to high levels of radiation may result in skin injury, tissue necrosis
l Stochastic effects: long-term health effects years and decades into future due to cumulative exposure to X-ray radiation, such as increase in DNA mutations, cataract formation and cancer incidence
The X-ray radiation dose of the PLX5100 is low which aims to limit the possibility of collateral side effects. When used as intended under medical supervision of a qualified radiographer, it is not likely anticipated to result in unforeseeable or observable side-effects.
● The rocker arm can move up and down, the combined tube can rotate at multiple angles, with the wireless panel it is more convenient to operate.
● The width of the body is only 62cm, which can easily pass through narrow passages and can be used for clinical exposure in the ward.
● PLX5100 uses lightweight materials, the weight of the whole machine is less than 150KG, innovative mechanical design, light and flexible to move; dislocation brake system, safe and reliable braking.
● Equipped with large size, low energy consumption, portable mobile wireless flat panel detector.
● The workstation adopts DR special image acquisition and processing software, supports DICOM service, convenient to operate.
● Equiped with high frequency inverter technology to ensure high X-ray quality, low radiation dose and sharp image.
Technical Specifications
Generator and tube | |
Kv scope | 40-120 kV |
Power | 5kW |
Nominal Tube voltage | 120kV |
Nominal Tube current | 100mA |
mAs range | 1.0mAs to 250mAs |
Focus | 0.6/1.8 |
Detector | |
Type | Digital Cesium Iodide (CsI) |
Detector size | 430mm x 430mm |
Image resolution | No less than 2.8 lp/mm |
Mobile unit | |
Movement | Human-powered traveling |
Source image distance | 50 to 170 cm |
Dimension | 1450 mm * 650 mm * 1350 mm |
Net weight | 155kg |
Stand column rotation | Yes |
Safety information
Pregnant women and breast-feeding women are not suitable.
Wear x-ray protective coats and glasses when operating the machine. When taking normal radiography, the focus-skin distance should be longer (at least more than 200mm), and the body should be as close to the flat panel detector as possible. Use lower dosage exposure if condition allowed.
As radioactive equipment, this equipment shall be operated by operator strictly according to provisions of the User Manual and cannot be used for other purpose except medical radiography. As improper operation will damage this equipment, it can only be used by trained personnel with needed radiation knowledge.
The potential side effects of the PLX5100 are related to X-ray radiation. There are mainly two types of side-effects of X-ray radiation:
l Deterministic effects: acute exposure to high levels of radiation may result in skin injury, tissue necrosis
l Stochastic effects: long-term health effects years and decades into future due to cumulative exposure to X-ray radiation, such as increase in DNA mutations, cataract formation and cancer incidence
The X-ray radiation dose of the PLX5100 is low which aims to limit the possibility of collateral side effects. When used as intended under medical supervision of a qualified radiographer, it is not likely anticipated to result in unforeseeable or observable side-effects.
