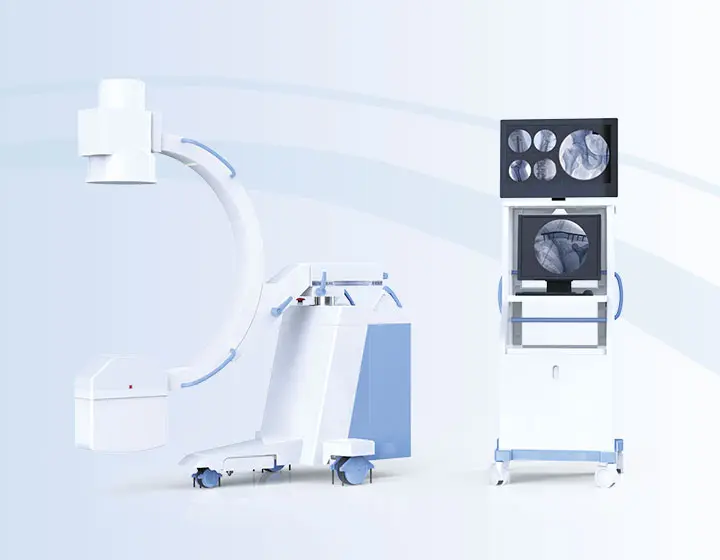

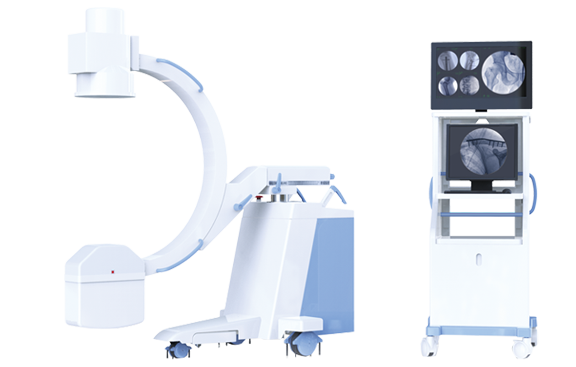

Friendly Operate Interface & Design PLX112B
• High frequency high voltage x-ray generator and high precision digital pulse control technology ensure excellent image with low skin dose.
|
• High quality image intensifier.
|
Friendly Operate Interface & Design
| • Divertible main wheel together with direction wheels make movement more flexible. • Electric support arm make the movement of machine more stable during moving.
|
All Angles Rotation
|  |
Application
A mobile (within an imaging facility) general-purpose diagnostic fluoroscopic X-ray system that uses a C-arm and digital techniques for image capture,display and manipulation and is designed to be used in a variety of general-purpose applications requiring real-time fluoroscopic imaging capabilities.lt includes spot-film capabilities in addition to the fluoroscopic features and is intended to optimize the capability of users to visually and quantitatively evaluate the anatomy and physiological function of various targeted body areas in real-time. it is frequently used in conjunction with an ingested or injected X-ray contrast medium. lmages can be both real-time and delayed formats.
Technical Specifications
Nominal X-ray tube voltage | 125kVp |
Nominal focus size | 0.6/1.8 |
Maximum continuous heat dissipation | 600W
|
Stated maximum input energy per hour | 400mAs |
C-arm sliding along the track | ≥120° |
C-arm rotates around the horizontal axis | ≥±180° |
C-arm move forward and backward | ≥200mm
|
Arc depth | 670mm
|
Safety information
Pregnant women and breast-feeding women are not suitable.Be sure to take precautions from X-ray before each exposure for patient and user. As permitted by radiography, the exposure shall be conducted with as low dose as possible.
As radioactive equipment, this equipment shall be operated by operator strictly according to provisions of the User Manual and cannot be used for other purpose except medical radiography. As improper operation will damage this equipment, it can only be used by trained personnel with needed radiation knowledge.

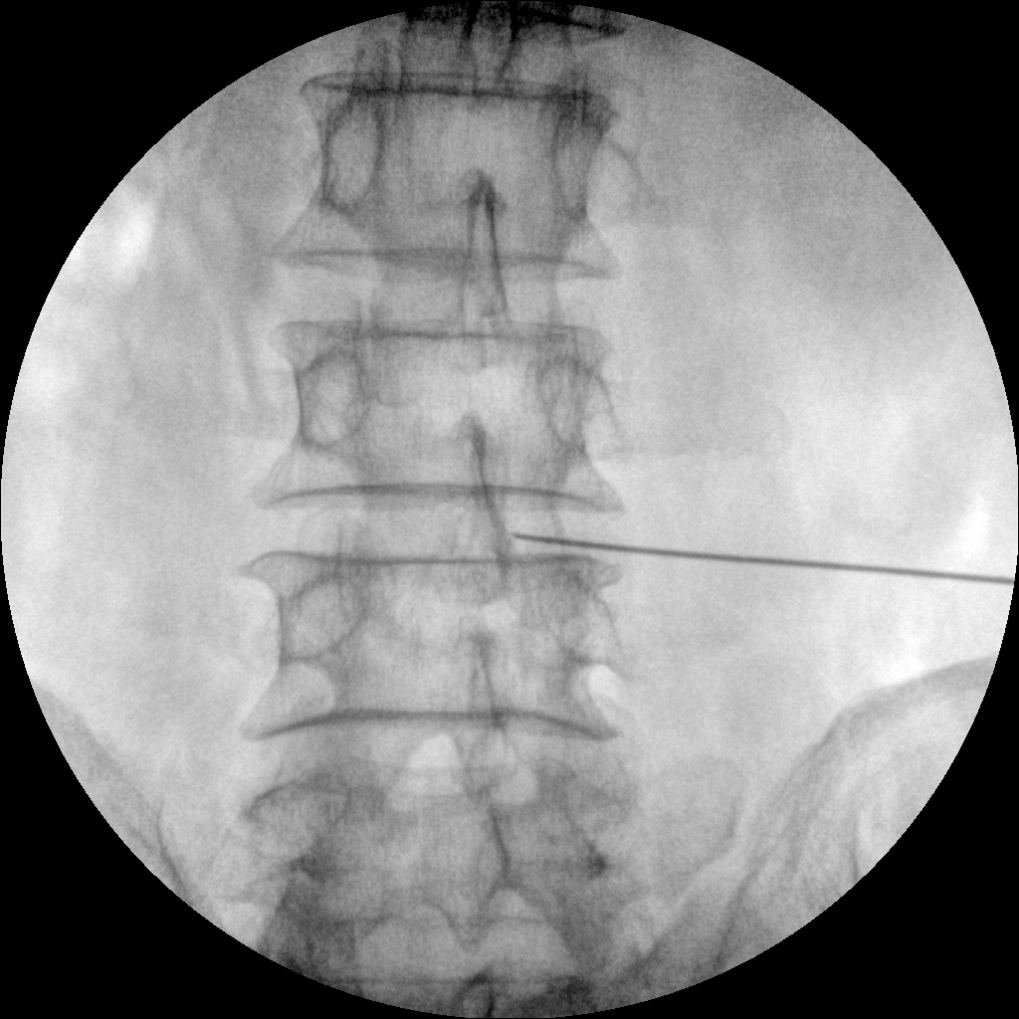

Pulse Control Digital Radiography Auto Fluoroscopy
• High frequency high voltage x-ray generator and high precision digital pulse control technology ensure excellent image with low skin dose.
• Digital radiography function, no more film-screen system, simplify the operate process.
• Maximum optimize the image brightness and definition depend on the kV/ mA auto trace function.
• Electric controlled rotated beam limiting device can satisfy multi-angle and multi-directional anatomical display requirements.
Digital workstation for the complete examination workflow
• High quality image intensifier.
• High definition CCD camera.
• High-resolution high-brightness monitoring system.
• Equipped with workstation to realize the functions include registration, image collection, processing, issue the report and so on,Dicom interface to connect the hospital imaging network.
Human graphic LCD touch screen system
Hand controller design support long distance exposure

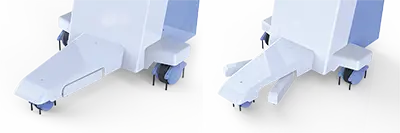

• Divertible main wheel together with direction wheels make movement more flexible.
• Electric support arm make the movement of machine more stable during moving.
Application
A mobile (within an imaging facility) general-purpose diagnostic fluoroscopic X-ray system that uses a C-arm and digital techniques for image capture,display and manipulation and is designed to be used in a variety of general-purpose applications requiring real-time fluoroscopic imaging capabilities.lt includes spot-film capabilities in addition to the fluoroscopic features and is intended to optimize the capability of users to visually and quantitatively evaluate the anatomy and physiological function of various targeted body areas in real-time. it is frequently used in conjunction with an ingested or injected X-ray contrast medium. lmages can be both real-time and delayed formats.
Technical Specifications
Nominal X-ray tube voltage | 125kVp |
Nominal focus size | 0.6/1.8 |
Maximum continuous heat dissipation | 600W
|
Stated maximum input energy per hour | 400mAs |
C-arm sliding along the track | ≥120° |
C-arm rotates around the horizontal axis | ≥±180° |
C-arm move forward and backward | ≥200mm
|
Arc depth | 670mm
|
Safety information
Pregnant women and breast-feeding women are not suitable.
Be sure to take precautions from X-ray before each exposure for patient and user. As permitted by radiography, the exposure shall be conducted with as low dose as possible.
As radioactive equipment, this equipment shall be operated by operator strictly according to provisions of the User Manual and cannot be used for other purpose except medical radiography. As improper operation will damage this equipment, it can only be used by trained personnel with needed radiation knowledge.
